- Using high-power infrared picosecond laser.
- Self-development Bessel specialized cutting head.
- Supports both all-in-one and split machines for glass cutting and splitting. Single or dual platforms can be customized.
- High-precision marble platform ensures stability and accuracy.
- Electrical components from top international brands.
- X/Y axis driven by linear motor and 0.1μm digital grating ruler.
- Motion control system with PSO function ensures uniform laser pulse spacing.
- Optional visual positioning system available.
| Equipment name | Double platform cutting & splitting integrated machine | Double platform cutting machine | Single platform cutting machine |
| Laser type | Infrared picosecond pulsed laser | ||
| Power | 60W / 80W / 100W | ||
| Wave length | 1064nm, beam quality: M2<1.2 | ||
| Pulse duration | <10PS; Pulse frequency: 1Hz–1000kHz | ||
| Cooling method | Water cooling | ||
| Drive motor | XY linear motor + grating ruler, positioning accuracy ≤2μm, repeatability ≤ ±1.5μm, acceleration 1G, max linear speed 1000mm/s | ||
| Cutting speed | 0–500mm/s (adjustable) | ||
| Cutting thickness | ≤19mm (depends on material, thickness, speed, and power) | ||
| Minimum cut edge | <5μm | ||
| Cutting accuracy | <20μm | ||
| X / Y cutting stroke | 600×700mm / 600×900mm | 400×500mm / 600×700mm / 600×900mm | 400×500mm / 600×800mm / 600×900mm |
| Splitting laser type | CO₂ continuous laser | ||
| Splitting laser power | 150W (250W / 350W optional) | ||
| Wavelength | 10.6μm | ||
| Pulse duration | 1–100kHz | ||
| Voltage, power | <8KW, AC220V | <5KW, 220V | <4KW, 220V |
| Equipment size | 2150mm × 2080mm × 1960mm or customized | 1700mm × 1700mm × 1960mm or customized | 1700mm × 1700mm × 1960mm or customized |
| Weight | ≈4000KG | ≈3500KG | ≈2500KG |
| Ground bearing | >700kg/m² | 500–700kg/m² | 500–700kg/m² |
- Contact information
Email: sales@xzlasers.com
WhatsApp: +8617702282583
1. We offer reliable international payment options:
Letter of Credit (L/C): Ideal for high-value orders, ensuring security for both buyer and seller.
Telegraphic Transfer (T/T): Common method — 30% deposit in advance, 70% balance before shipment.
PayPal / Western Union: Suitable for small parts or sample payments (not recommended for full-size machines).
2. Delivery Methods
Due to the size and weight of our glass laser equipment, we primarily ship via ocean freight:
Sea Freight (Container Shipping): The most suitable and economical solution for all equipment models.
Air Freight: Not available for most full-size machines. Can be arranged for small accessories or demo units upon request.
3. Delivery Time
Production Lead Time: Usually 30–50 working days after receiving the deposit.
Shipping Time: Delivery varies by destination. Typically 15–40 days by sea, depending on the port location.
4. Shipping Costs
Shipping costs depend on the destination port, machine dimensions, and total weight.
- Contact information
Email: sales@xzlasers.com
WhatsApp: +8617702282583
1. Warranty Period:
Laser Machine: 18 months
Within 12 months, free replacement of parts, including the laser device.
For failures caused by non-human reasons, our company will send new accessories to customers for free, including the laser source.
Customers will need to send back faulty parts (laser source) first.
For other parts, there is no need to return them.
From 12 to 18 months, the customer will bear the laser cost and postage.
Both parties will share the postage cost for the return of the laser device.
The customer will send the faulty laser to our bonded warehouses in Jinan or Shenzhen, China. The purpose of this is to avoid complex customs procedures.
After 18 months, the laser source will cost, and the customer will need to buy the parts and cover the postage costs.
2. Laser Charging Instructions
| Time | Laser | Remark |
| Within 12 months | Free replacement | Both parties pay the postal fee (If received within one month, customer bears no cost) |
| 12–18 months (During the warranty period) | Laser source cost × 0.2 | Both pay postage Send to bonded warehouse in China (Jinan/Shenzhen) |
| After 18 months (Out of warranty) | Laser source cost × 1.2 | Buy directly, customer pays postage |
- Contact information
Email: sales@xzlasers.com
WhatsApp: +8617702282583
Q1: What is the maximum cutting area of the machine?
A: The standard platform size is 600mm × 800mm, referring to the effective working area of the laser head. Customized platforms are available for larger glass sizes upon request.
Q2: What glass thickness can it cut?
A: The machine can cut through glass up to 7mm thick in a single pass. For thicker glass, multi-pass (step) cutting is available, with a maximum recommended thickness of around 8mm. Cutting performance may vary depending on the material and thickness—samples are recommended for confirmation.
Q3: Are there any limitations on glass types?
A: Yes. The machine performs best on ultra-clear, float, and regular white glass. For tinted, coated, or laminated glass, trial cutting is recommended to ensure stability.
Q4: What are the advantages of laser cutting over waterjet or CNC?
A: Laser cutting is cleaner and more efficient. It requires no water or abrasives, produces finer cuts, and delivers better precision—especially suitable for complex and delicate shapes.
Q5: What shapes can it cut?
A: The system supports any shape, including straight lines, arcs, circles, and irregular curves—ideal for artistic and customized designs.
Q6: How is the edge quality after cutting? Does it need polishing?
A: The cut edges are smooth and clean. In most cases, no post-processing or polishing is needed, and the glass can go directly into tempering or laminating.
Q7: Can the glass be tempered after laser cutting?
A: Yes. As long as cutting parameters are set correctly and edge quality is controlled, the glass can be tempered after laser cutting.
Q8: What platform and configuration options are available?
A: We offer several models to meet different production needs:
– Single-platform laser cutting machine
– Single-platform cutting + breaking machine (with 200W CO₂ laser breaking system)
– Dual-platform laser cutting machine (one side cutting, one side loading/unloading)
– Dual-platform cutting + breaking machine (metal tube laser; one cutting head serves two platforms, alternating between cutting and breaking)
Q9: Is the machine easy to operate? How many people are needed?
A: The system is user-friendly. Once the file is imported, cutting starts with one click. Only one operator is needed for the entire process.
- Contact information
Email: sales@xzlasers.com
WhatsApp: +8617702282583

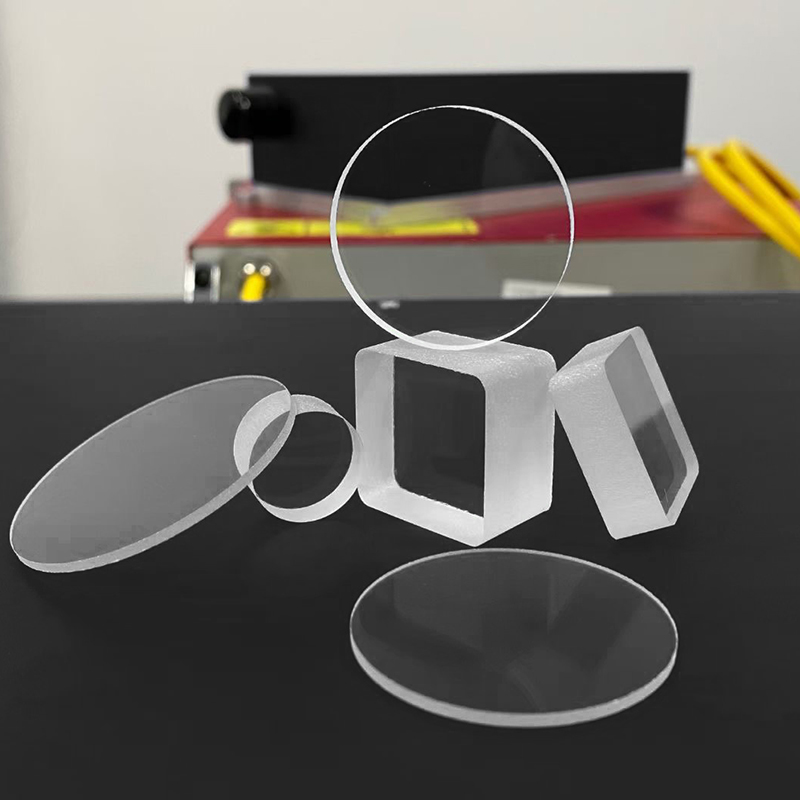

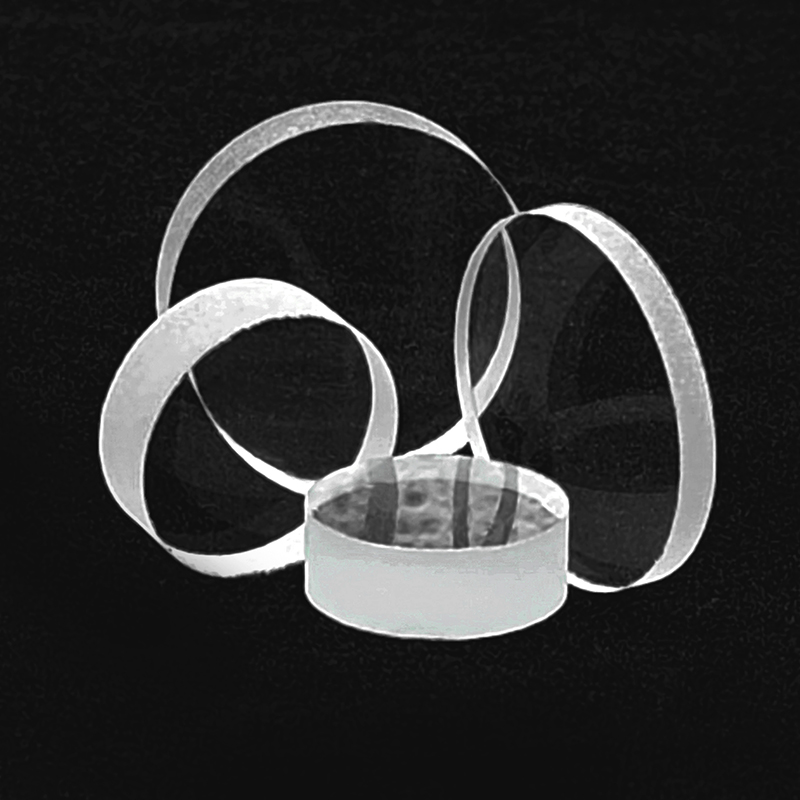

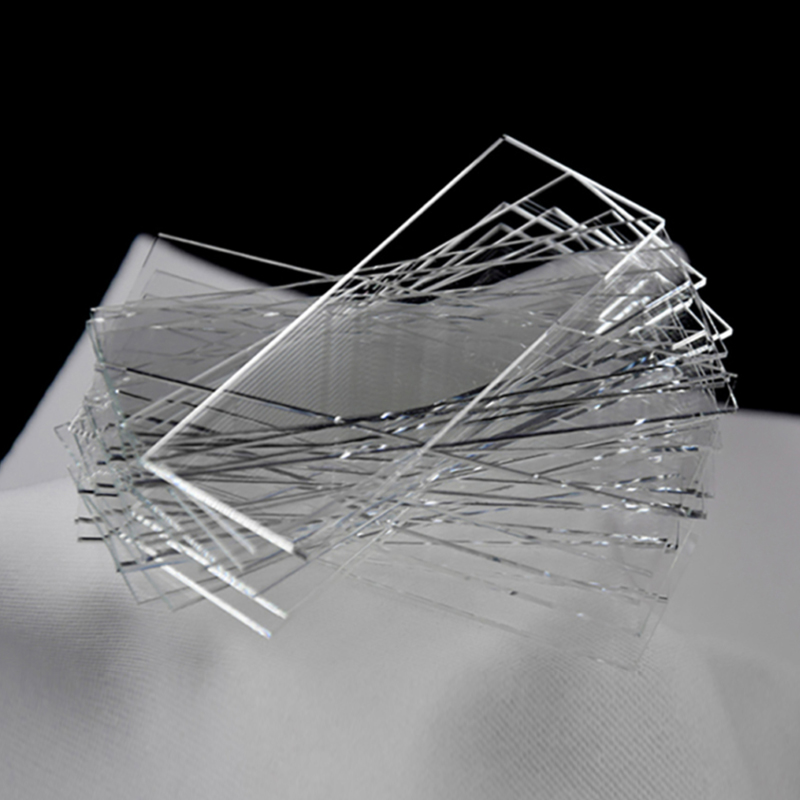

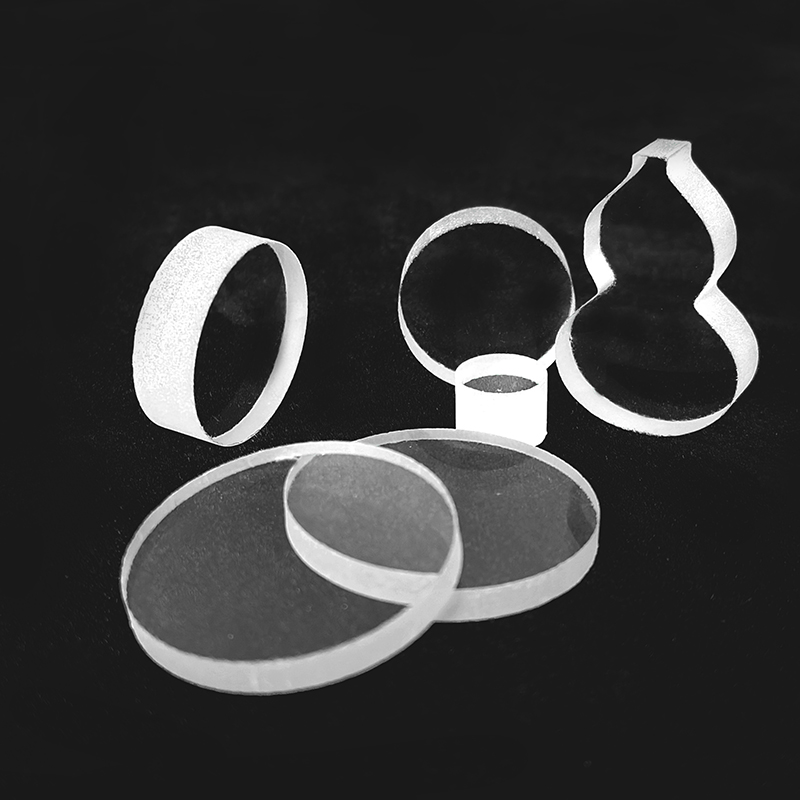

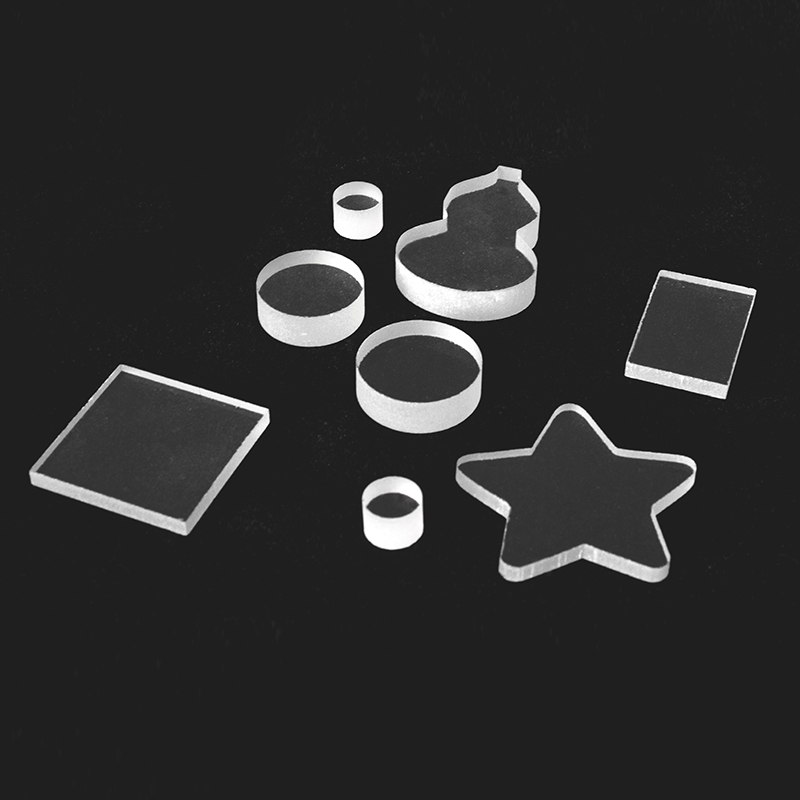

Sample Display
